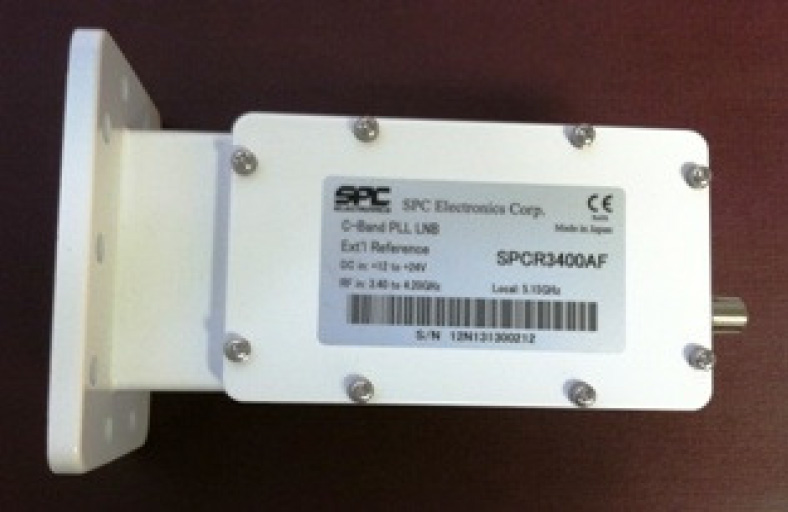

C-Band Ext. Ref. PLL LNB
Features:
- 1dB Gain Compression +10dBm
- Suitable for high data rate digital communication applications
- Low power consumption
- Low noise
TYPICAL SPECIFICATIONS SPCR3400 series
| No | Item | Specification |
|---|---|---|
| -1 | RF Input Frequency | 3.4 to 4.2 GHz |
| -2 | IF Output Frequency | 950 to 1750 MHz |
| -3 | Local Frequency | 5.15 GHz |
| -4 | Local Frequency Stability | Phase locked to external reference |
| -5 | Local Oscillator Leakage | -45 dBm max. @ Waveguide input. |
| -6 | Requirement for External Reference | Supplied through the center conductor of IF cable [Frequency] 10MHz(sine wave) [Input Level] 0 to -10dBm @ IF out [Phase Noise] -144dBc/Hz max. @ 1KHz -154dBc/Hz max. @ 10KHz -154dBc/Hz max. @ 100KHz |
| -7 | Local Phase Noise: | Offset Frequency Phase Noise 1 kHz -75 dBc/Hz max. 10 kHz -85 dBc/Hz max. 100 kHz -95 dBc/Hz max. |
| -8 | Noise Temperature (+25oC) | 20K Typ, 30K Max |
| -9 | Gain | 55 to 70 dB Over Frequency & Temperature |
| -10 | Gain Ripple | 1 dB p-p max per 36 MHz segment across the operating freq band |
| -11 | Input VSWR | 3.0: 1 max |
| -12 | Output | 2.5:1 max. @ 75? |
| -13 | Image Rejection | -45 dBc max. |
| -14 | 1 dB Gain Compression Point | +10 dBm min. |
| -15 | Spurious in Rx Band | -130dBm max. @ waveguide input excluding Rx out +/- 1MHz measured at RF Input power -85dBm |
| -16 | Input Voltage | +12 to +24 V supplied through center conductor of the IF cable. |
| -17 | Current | 300 mA max. |
| -18 | Size | (L)144 mm x (W)68 mm x (H)39 mm (5.6 x 2.6 x 1.5 in) |
| -19 | Weight | approx. 580 g (18 oz) |
| -20 | Operating Temperature | -40°C to +60°C |
| -21 | Storage Temperature | -40°C to +80°C |
| -22 | Input Interface | CPR-229G, Waterproof (mated with matching flange and gasket). |
| -23 | Output Interface / Ordering information | Standard F-Type, 75Ω, female, Waterproof Model SPCR3400AF Optional N-Type, 50Ω, female, Waterproof Model SPCR3400AN |
