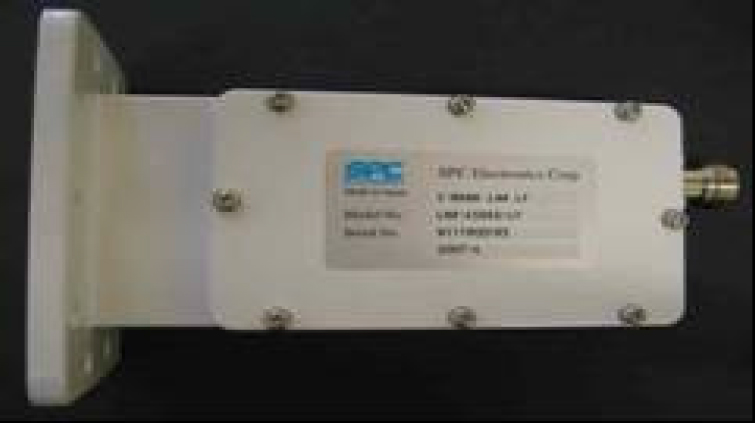

C-Band Low Band Noise Amplifier
Model LNA-45Deg-LF
| ELECTRICAL SPECIFICATION | |
|---|---|
| Frequency | 3.4 to 4.2 GHz |
| Bandwidth | 800 MHz |
| Gain | 52.5 +/- 3.5 dB (over temp & freq) |
| Out of Band Gain | 0 dB @ 5.925 – 6.425 GHz |
| Gain Flatness | 4 dBp-p max @ 800 MHz band |
| Gain Slope | 1 dBp-p max @ any 36 MHz |
| Noise Temperature | 35K typical, 45K max @ +25°C |
| Input Return Loss | 5 dB min. (w/o Isolator) |
| Output Impedance | 50 ? nominal |
| Output Return Loss | 10 dB min. |
| 1dB Gain Compression Point | 0 dBm min. |
| Input DC Voltage | +10 to +18V |
| DC Current | 120 mA max. |
| MECHANICAL SPECIFICATION | |
|---|---|
| Input Flange | CPR-229G |
| Output Connector | Type N, Female |
| Input DC Power | Through Output Connector |
| Size | approx 65 x 140 x 40 (mm) |
| Weight | 430g approx. |
| Color | White, Munsell N9.5 semi-gloss |
| Marking (Label) | SPC Label |
| ENVIRONMENTAL SPECIFICATION/OPERATING ENVIRONMENT | |
|---|---|
| Temperature | -40 to +55°C |
| Relative Humidity | Up to 100% including condensation and frost |
| Rainfall | 4.00 inch/hour with wind speed 45 miles/hour, gusts to 60 miles/hour |
| NON OPERATING ENVIRONMENT | |
|---|---|
| Temperature | -40 to +55°C |
| Relative Humidity | Up to 100% including condensation and frost |
