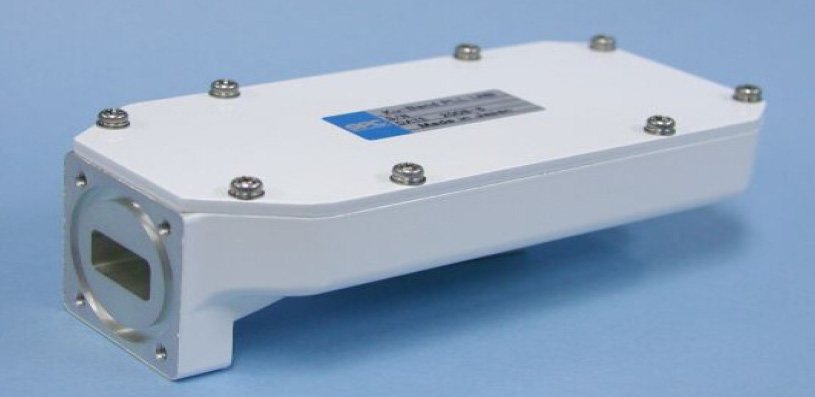

Ku-Band PLL LNB
Features:
- 1dB Gain Compression +10dBm
- Suitable for high data rate digital communication applications
- Low power consumption
- Low noise
| No | Item | Specification |
|---|---|---|
| -1 | RF Input Frequency | 11.70 to 12.20 GHz 12.25 to 12.75 GHz 10.95 to 11.70 GHz |
| -2 | IF Output Frequency | 950 to 1450 MHz 950 to 1700 MHz |
| -3 | Local Frequency | 10.75 GHz 11.30 GHz 10.00 GHz |
| -4 | Local Frequency Stability | Standard: ±2.3ppm. max. @ -40oC to +60oC, +25oC Reference (SPCR5300) Option : ±0.5ppm. max. @ -40oC to +60oC, +25oC Reference (SPCR5302) avail in 11.7-12.2 GHz only |
| -5 | Local Phase Noise: | Offset Frequency / Phase Noise 100 Hz / -70 dBc/Hz 1 kHz / -80 dBc/Hz 10 kHz / -85 dBc/Hz 100 kHz / -105 dBc/Hz |
| -6 | Noise Figure (+25°C) | 0.8dB max. |
| -7 | Gain | 55 to 70 dB Over Frequency & Temperature |
| -8 | Gain Ripple | 1 dB p-p max per 36 MHz segment across the frequency band |
| -9 | 1 dB Gain Compression Point | +10 dBm min. |
| -10 | Spurious in Rx Band | -140dBm max. @waveguide input excluding Rx out + 1 MHz measured at RF Input power -85dBm |
| -11 | Input Voltage | +12 to +24 V supplied through center conductor of IF cable. |
| -12 | Current | 200 mA |
| -13 | Input Interface | WR-75,Waterproof – Mated with matching flange and O-ring |
| -14 | Output Interface | Standard: F-Type, 75 ?, female, Waterproof Option: N-Type, 50 ?, female, Waterproof |
| -15 | Size | 125(L) mm x 60(W) mm x 22(H) mm (4.9 x 2.3 x 0.8 in) without flange |
| -16 | Weight | 340g (F-Conn) / 348g (N-Conn) |
| -17 | Operating Temperature | -40°C to +60°C |
| -18 | Storage Temperature | -40°C to +80°C |
