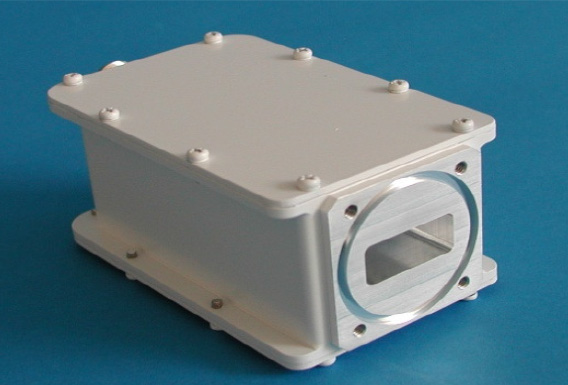

ELECTRICAL SPECIFICATIONS

No	Item	Specification
-1	RF Input Frequency	7.25 to 7.75GHz
-2	IF Output Frequency	950 to 1450MHz
-3	Local Frequency	6.3GHz
-4	Local Frequency Initial Offset	±6.3KHz max. @+23
-5	Local Frequency Stability	±12.5KHz max. @over temp.
-6	Local Phase Noise	-75dBc/Hz max. @1KHz -85dBc/Hz max. @10KHz -95dBc/Hz max. @100KHz -105dBc/Hzmax. @1MHz
-7	Local Leakage	-60dBm max at waveguide flange.
-8	Noise Figure	0.7dB typ. @+23
-9	Gain	62dB±4dB @Over temp. and freq.
-10	Gain Flatness	±2.0dB max. @Over band
-11	Amplitutde Response	± 1.5dB max. @ over any 120MHz band ± 0.5dB max. @ over any 10MHz band
-12	Gain Stability	±1.0dB max. @Over a 24hr at +25
-13	Input VSWR	2.5:1 max.
-14	Output VSWR	2.0:1 max.
-15	Image Rejection	-60dBc max.
-16	P1dB	+15dBm min.
-17	Signal Independent Spurious	-60dBm max. @RX-band
-18	Signal Related Spurious	-65dBc max. @0dBm output, RX-band
-19	Densense level	-40dBm, 7.9 – 8.4GHz @No more than 0.1dB of noise figure degradation
-20	Overdrive	-20dBm @Non-damaging
-21	Input DC Power	+15 to +24VDC, 500mA @ Multiplexed on a single coaxial connector with the IF.
-22	Input Interface	WR-112 waveguide, FPBR-84 flange
-23	Output Interface	50?, N-type female coaxial connector.

MECHANICAL SPECIFICATIONS

No	Item	Specification
-1	Size	(L) 113mm x (W) 70mm x (H) 55mm
-2	Weight	approx. 550g
-3	Color	White, Munsel N9.5, semigloss

ENVIRONMENTAL SPECIFICATIONS

No	Item	Specification
-1	Operating Temperature	-40 to +60
-2	Operating Altitude	10,000 ft ASL
-3	Operating Relative Humidity	100%, condensing
-4	Non-operating Temperature	-50 to +70
-5	Non-operating Altitude	50,000 ft. ASL
-6	F Shock	20g, 11ms, half sine
-7	Vibration	MIL-STD-810E, method 514-4
